P223, Direct Drive System

Load 80 lb., Max. Operational Dynamic Torque 4 ft-lb.

Performance

Az

EL

Weight








Acceleration

60 deg/sec^2

60 deg/sec^2

Pedestal

56 lbs

Velocity

60 deg/sec

60 deg/sec

Riser

5-10 lb

Motion

360 deg

180 deg

Counter Balance

5-25 lb

Accuracy, Pointing



± 0.03 deg

Configuration

El/Az







No Radome



Mechanical









Torque, Stall

18 lb-ft

18 lb-ft

Antenna Size, Max

2 ft

Torque, Operational

4 ft-lb

4 ft-lb

EE Controller



Locked rotor freq.

20 hz

25 hz

Size

19” rack

Backlash

0 deg

0 deg

Weight

10 lb











Load Capacity









Radial, Static

4200 lb

4519 lb

Amplifier

PWM

Axial, Static

3704 lb

3704

Switching Frequency

33 KHz

Radial, Dynamic

1578 lb

1893 lb

Motor, Brushless

DC

Axial Dynamic

983 lb

983 lb

Power Supply



Moment, Static

7560 lb-in



Weight

5 lb

Moment, Dynamic

3780 lb-in



Size

8x63







Power, external

115 Vac, 1 phase,









50/60 Hz, 20 A

* Environmental

Run

Stall





Temperature

-22 to 55 deg C

-40 to 70 deg C

General Data



Vibration @ 5-2000 Hz

10 Grms

10 Grms

Reliability, MTBF

10,000 hrs

Shock, ½ sin, 11 msec

100 G

100 G

*Optional



Humidity

0-95 %



MIL system



Altitude

40,000 ft



Marine Sealed







P232, Direct Drive System

Load 200 lbs, Max. Operational Dynamic Torque 8 ft-lbs.

Performance

Az

EL

Weight




Acceleration

60 deg/sec^2

60 deg/sec^2

Pedestal

67 lbs

Velocity

60 deg/sec

60 deg/sec

Riser

8-20 lb

Motion

360 deg

180 deg

Counter Balance

5-25 lb

Accuracy, Pointing



± 0.03 deg

Configuration

El/Az







No Radome



Mechanical









Torque, Stall

22 lb-ft

22 lb-ft

Antenna Size, Max

3 ft

Torque, Operational

7.3 ft-lb

7.3 ft-lb

EE Controller



Locked rotor freq.

20 hz

25 hz

Size

19” rack

Backlash

0 deg

0 deg

Weight

10 lb











Load Capacity









Radial, Static

6300 lb

6800 lb

Amplifier

PWM

Axial, Static

5573 lb

5573 lb

Switching Frequency

33 KHz

Radial, Dynamic

2375 lb

2850 lb

Motor, Brushless

DC

Axial Dynamic

1860 lb

1860 lb

Power Supply



Moment, Static

15,753 lb-in



Weight

5 lb

Moment, Dynamic

7800 lb-in



Size

8x63







Power, external

115 Vac, 1 phase,









50/60 Hz, 20A

* Environmental

Run

Stall





Temperature

-22 to 55 deg C

-40 to 70 deg C

General Data



Vibration @ 5-2000 Hz

10 Grms

10 Grms

Reliability, MTBF

10,000 hrs

Shock, ½ sin, 11 msec

100 G

100 G

*Optional



Humidity

0-95 %



MIL system



Altitude

40,000 ft



Marine Sealed

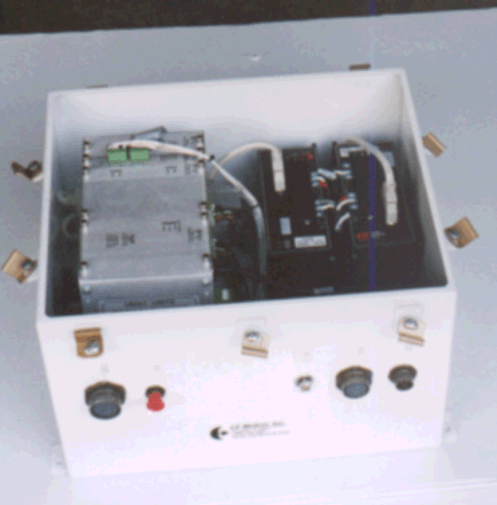

P232-C1 Servo Controller



Modes:

Position, Rate, Scan, Joy-Stick (optional).

Based on Delta Tau UMEC configuration.
