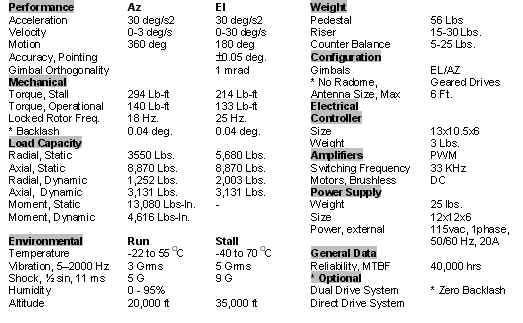

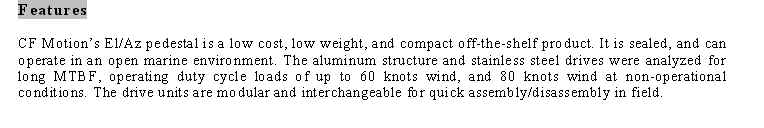

El/AZ Pedestal for Marine Application

EL = 180 Deg., AZ = 360 Deg.

Optional Direct Drive Configuration

Low Weight (Max. 56 Lb.)

Identical Drives with Zero Backlash

Low Weight, Low Cost, Sealed, Modular

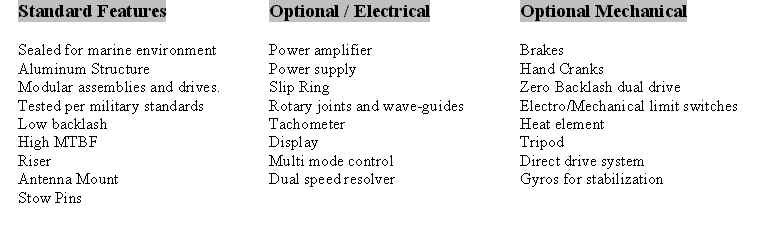

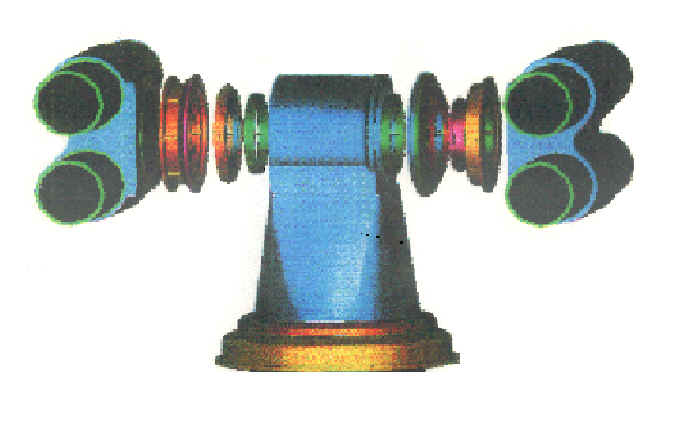

Less than 30 minutes (7 Modules) field Assy.


../wpe3.jpg (33912 bytes)

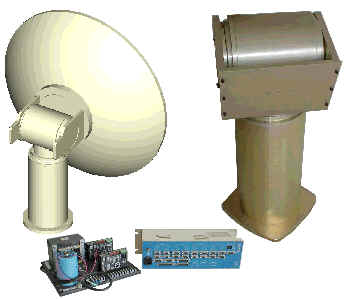

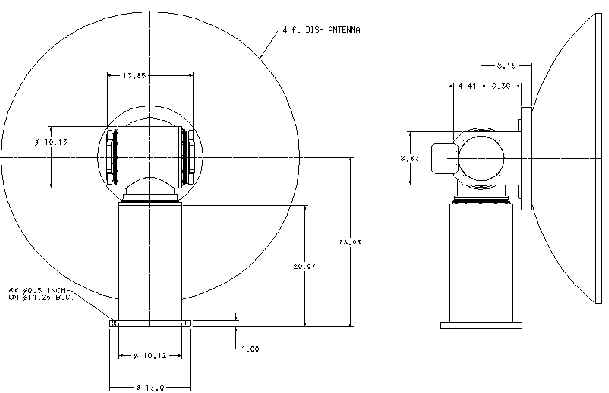

El/AZ Pedestal :

Ground Command Post for up to 112 mph winds.

Control Electronics
  • Line of Sight
  • Accuracy = 0.1
  • Antenna  2.5m (8 ft) Max.
  • Assembly: No tools required, 30 minutes.
  • Zero Backlash  Drive
  • Brushless Motors
  • Sealed System
  • Light Weight
  • Modular Assembly

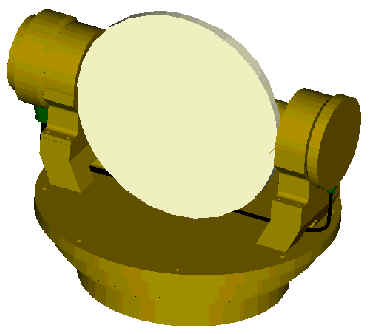

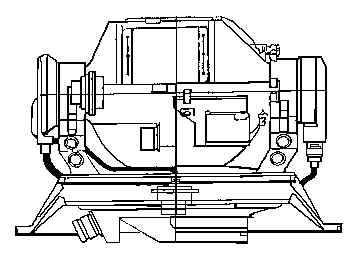

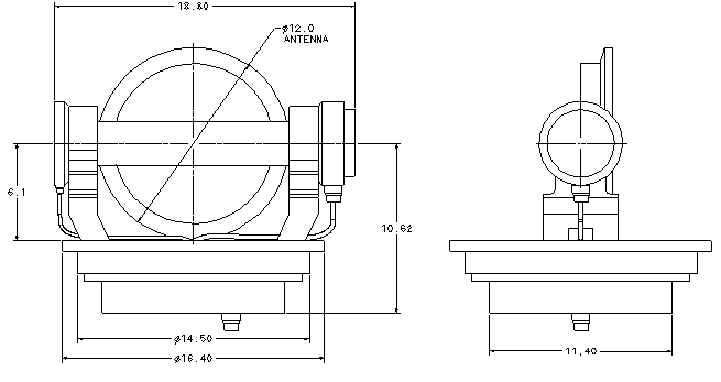

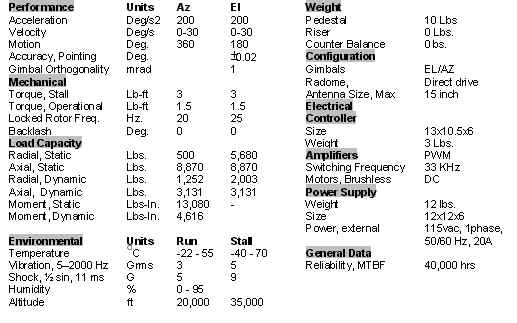

EL/Az Airborne SATCOM Pedestal

Antenna: 9 - 12 dia. dish.

EL = 180 Deg., AZ = 360 Deg.

Accuracy 0.02 deg.

Direct drive.

Low Weight (Max. 26 Lb.)

High Stiffness.










El/Az Missile Launcher


Low weight

Direct Drive

High Stiffness

0.2 deg LOS
